High Quality Dual Row U Type Connector, 2.00mm Pin Header U Type Connector, 2.00mm Pitch Male U Type Connector Suppliers in China

Home > Products > Electronic Wire Harness > 2.00mm Pin Header Dual Row U Type

2.00mm Pin Header Dual Row U Type

2.00mm Pin Header Dual Row U Type

    Payment Type: T/T,Paypal
    Terms of Trade: FOB,CIF,EXW
    Min. Order: 1000 Bag/Bags
    Delivery Time: 14 Days
    Packaging: bag packing,Tube packing, reel packing
    Productivity: 10000K/month
    Brand: ANTENK
    Transportation: Ocean,Air
    Place of Origin: China
    Supply Ability: 10000K/month
    Certificate: ISO9001
    HS Code: 8536909000
    Port: SHENZHEN,HONGKONG

Basic Info

Model No.: PHDU02-XXD-ADXXX

Product Description

Shenzhen Antai Electronics Co., Ltd. launched a 2.00mm Pin Header Dual Row U Type connector.

Founded in 2004, Shenzhen Antai Electronic Co., Ltd. is located in Bao'an District, Shenzhen City, Guangdong Province, one of the most developed economies in China. It is a well-known electronic connector and wire harness manufacturer integrating mold development, production and sales. The general taxpayer enterprise can issue 17% VAT, the factory has the right to import and export, and more than 70% of the products are exported. The company has the professional engineering and quality team of the industry, and has Taiwan high-speed precision punching machine and lathe. And imported mold processing equipment, testing equipment. It has terminal stamping, mold design and manufacture, connector assembly workshop, injection molding workshop, and production base in Dongguan and the mainland. The total number of employees is more than 200. It has more than 18 sets of precision mold processing equipment, 8 sets of 35-120 tons of precision plastic injection machines from Japan and Taiwan, 6 sets of precision high-speed punching machines from Japan and Taiwan, and more than 250 sets of plastic molds for various connectors. More than 20 test equipment, more than 200 automatic assembly machines.

Product summary please see the form:

PIN number

02 To 80

Contact Plating:

Gold plated, tin plated, plated with gold tin (Please refer to the code description on the paper for the thickness of the coating)
Connector Type Dual row

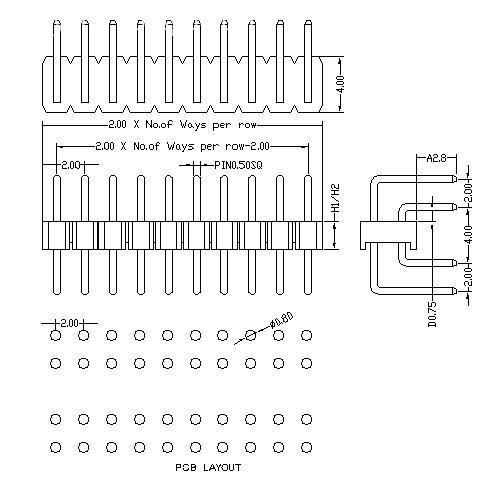

Pin Length:



(According to customer needs)

A:0280=2.80mm
D:0075=0.75mm

Please mark the desired length in the A/C/D/B
Insulator Material PBT/PA6T/LCP/PA9T UL 94V-0 Black
Product packaging

A:Tray

B:Bag
T:Tube
U:Tube+CAP
R:Tape&Reel
W:Tape&Reel+CAP
Plastic High H=1.5mm/2.00mm(According to customer needs )
SPECIFICATION
Current Rating: 1.5 Amp
Insulation Resistance: 1000M ohms min
Contact Resistance: 20M ohms max
Dielectric Withstanding: AC500V
Operating Temperature: -65°C to +125°C
Contact Material: Brass
Insulator Material: PA6T,UL 94V-0 Black

2.0 Pin Header Dual Row Angle C Type
